bourns原厂pwr263s-35系列厚膜电阻pwr263s-35-4r00f 快速发货
- 型 号：
- bourns原厂pwr263s-35系列厚膜电阻pwr263s-35-4r00f 快速发货
- 发货地点：
- 广东省/深圳
- 产品类别：
- 其他电阻器
- 更新时间：
- 2017/12/4 14:07:46
商品详情
bourns原装正品，1pcs起订.我们承诺：“所有产品均为原厂新品，100%保证质量！30天内有任何质量问题随时包退换！”我们实践自己的承诺，为自己的所有行动和结果承担责任。
features
d2
pak housing
low inductance
resistor electrically isolated from the
backplate
high power rating
compatible with lead free solder reow
temperatures
rohs compliant
aec-q200 qualied
applications
power supplies
motor drives
test and measurement
rectiers

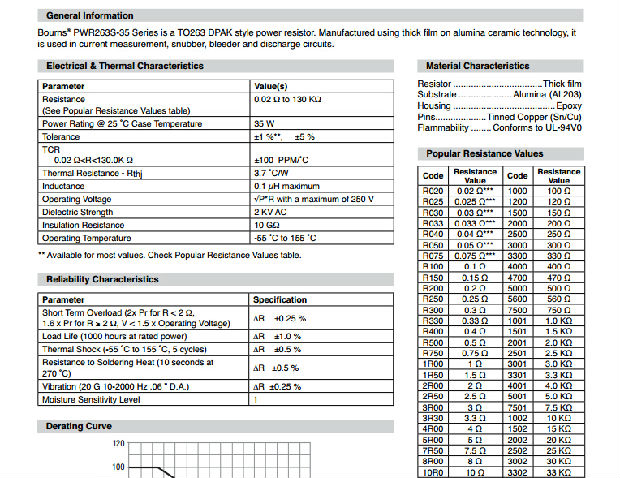

bourns® pwr263s-35 series is a to263 dpak style power resistor. manufactured using thick fi lm on alumina ceramic technology, it
is used in current measurement, snubber, bleeder and discharge circuits.
bourns:
pwr263s-20-30r0j pwr263s-20-33r0f pwr263s-20-3r00j pwr263s-20-3r00f pwr263s-20-56r0f
pwr263s-20-30r0f pwr263s-20-56r0j pwr263s-20-27r0j pwr263s-20-r750j pwr263s-20-15r0f
pwr263s-20-r750f pwr263s-20-15r0j pwr263s-20-1003f pwr263s-20-1000j pwr263s-20-12r0f
pwr263s-20-4r70j pwr263s-20-4r70f pwr263s-20-5r60j pwr263s-20-47r0f pwr263s-20-5r60f
pwr263s-20-27r0f pwr263s-20-47r0j pwr263s-20-3r30j pwr263s-20-1001f pwr263s-20-1003j
pwr263s-20-3r30f pwr263s-20-1000f pwr263s-20-3002j pwr263s-20-3300f pwr263s-20-1303f
pwr263s-20-7r50f pwr263s-20-2r00j pwr263s-20-3301f pwr263s-20-r500j pwr263s-20-3301j
pwr263s-20-1r50j pwr263s-20-1r00j pwr263s-20-75r0f pwr263s-20-1r50f pwr263s-20-2r50j
pwr263s-20-r500f pwr263s-20-33r0j pwr263s-20-4700j pwr263s-20-75r0j pwr263s-20-10r0f
pwr263s-20-1303j pwr263s-20-2r00f pwr263s-20-4700f pwr263s-20-3002f pwr263s-20-1r00f
pwr263s-20-2r50f pwr263s-20-7r50j pwr263s-20-3300j pwr263s-20-10r0j pwr263s-20-1001j
pwr263s-20-20r0j pwr263s-20-1002j pwr263s-20-1002f pwr263s-20-12r0j pwr263s-20-20r0f
pwr263s-35-1000f pwr263s-35-1000j pwr263s-35-1001f pwr263s-35-1001j pwr263s-35-1002f
pwr263s-35-1002j pwr263s-35-10r0f pwr263s-35-12r0f pwr263s-35-12r0j pwr263s-35-1303f
pwr263s-35-1303j pwr263s-35-15r0f pwr263s-35-15r0j pwr263s-35-1r00f pwr263s-35-1r00j
pwr263s-35-1r50f pwr263s-35-1r50j pwr263s-35-20r0f pwr263s-35-20r0j pwr263s-35-27r0f
pwr263s-35-27r0j pwr263s-35-2r00f pwr263s-35-2r00j pwr263s-35-2r50f pwr263s-35-2r50j
pwr263s-35-3002f pwr263s-35-3002j pwr263s-35-30r0f pwr263s-35-30r0j pwr263s-35-3300f
pwr263s-35-3300j pwr263s-35-3301f pwr263s-35-3301j pwr263s-35-33r0f pwr263s-35-33r0j
pwr263s-35-3r00f pwr263s-35-3r00j pwr263s-35-3r30f pwr263s-35-3r30j pwr263s-35-40r0j
